NEW Setup v2.1 (5 July) — as per New SOP

Weighbridge Automation • Mining & Geology Compliance

Complete Integrated Solution for Weighbridge Automation

RFID-based vehicle identification, automated boom barrier with safety sensors, industrial I/O controller & relay modules, outdoor LED display boards, and traffic safety indication — designed for harsh mining environments.

Explore Products Software Downloads View SOP Workflow

RFID • FastTag
IP65 Outdoor
RS232 / RS485 / Ethernet
MQTT / API

WB-01 · AUTO CYCLE DEMO --:--:--

Gross weight0 kgWaiting

ANPR plate— — —Gate closed

RFID EPC—No tag

Govt portalIdleStandby

Boom barrier operation: ≤5sec
Multi-tag RFID reading: 200tags/sec
UHF RFID read range: 3–12m
Support helpline: 24×7

01Software Hub

Download Center

Official setups, RFID reader software, updates and field utilities — everything your weighbridge site needs, in one place.

Latest · As per New SOP

New Setup v2.1 (5 July)

eRawannaSoft setup v2.1 published on the Rajasthan Mines portal — install this version as per the new SOP.

ZIP minesportal.rajasthan.gov.in 5 July

Download New Setup v2.1

NEW UPDATE 2Update package ZIPgeosat.in IOT Setup v1.3.23Released 27 April DRIVEGoogle Drive Old → New Version UpgradeUpgrade an existing installation DRIVEGoogle Drive Download SoftwareSoftware package DRIVEGoogle Drive Download Software 1Software package 1 DRIVEGoogle Drive Update DatabaseDatabase update package ZIPgeosat.in TYPE RFID-1CR06 / CR15 / CR20 reader software RARgeosat.in TYPE RFID-2 · ID TECH (White)ID TECH white reader software ZIPgeosat.in TYPE RFID-2 · ID TECH (Black)ID TECH black reader software ZIPgeosat.in TYPE RFID-3 · SRKSRK reader software ZIPgeosat.in TYPE RFID-4 · Time WatchTime Watch reader software ZIPgeosat.in MQTT Error FixFix script for MQTT errors (Windows) BATgeosat.in ANPR ModelANPR model files ZIPgeosat.in Display TestLED display test utility ZIPgeosat.in Test SetupOnline setup test page WEBgeosat.in/test.php SOP PDFWB Automation · Procurement & Installation · V7 (19 Dec 2025) PDFgeosat.in

Need installation help? Technical query 9462806660 For CCTV, PoE & Tenda support 8502986422 WhatsApp

02Engineer Toolkit

Field tools for installers

Generate camera stream URLs and decode RFID card data right in your browser.

CP PLUS RTSP Generator

Build the RTSP stream URL for a CP PLUS camera.

Camera IP Username Password

rtsp://user:pass@IP:554/cam/realmonitor?channel=1&subtype=0

EPC No. Generator

Extract the 24-digit EPC number from raw RFID reader output.

Input String

Valid EPC = 34 + 22 hex characters (24 total)

Both tools run entirely in your browser — nothing you type is uploaded.

03System Overview

What we deliver

A robust automation stack focused on safety, accuracy, and real-time compliance.

01 / IDENTIFY

RFID Identification & Tracking

Fast vehicle recognition using UHF RFID / FastTag flow to reduce manual errors and increase throughput.

02 / CONTROL

Industrial Control & Integration

Controller + isolated I/O + relay modules for sensors, traffic lights, boom barrier, and secure device coordination.

03 / GUIDE

Outdoor LED & Safety Indication

High-visibility LED display boards + red/green signals + PA guidance for safe and orderly vehicle movement.

Key benefits for Mining & Geology

Built for harsh mining environments Real-time data + compliance ready

Fully automated weighbridge operations
Improved safety & traffic control
Reduced manual intervention & errors
High reliability in harsh environments
Scalable, future-ready architecture

04Products

Automation hardware lineup

Use these modules individually or as a complete integrated solution.

P—01

Boom Barrier + Safety Sensor

Outdoor industrial barrier with fast operation and integrated safety sensor support.

≤ 5 sec
Up to 3m
Wired I/O

P—02

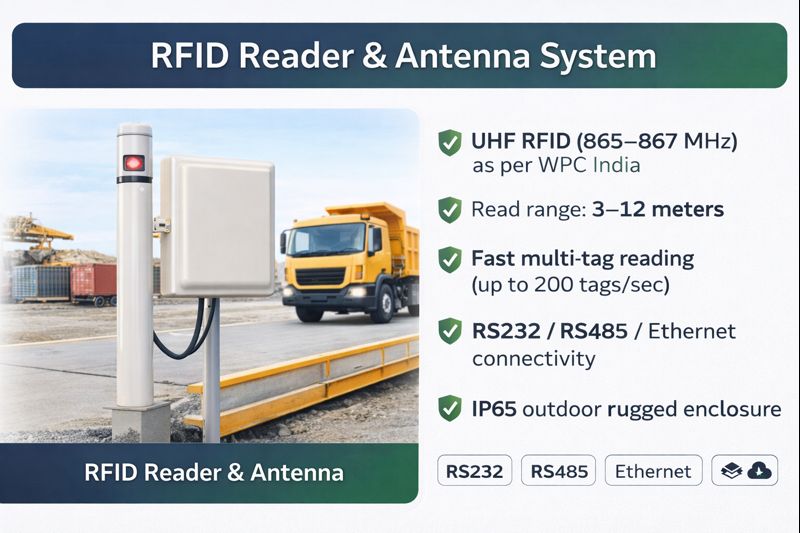

RFID Reader & Antenna

UHF RFID (865–867 MHz), multi-tag reading with Ethernet/RS232/RS485 options.

3–12m
200 tags/sec
IP65

P—03

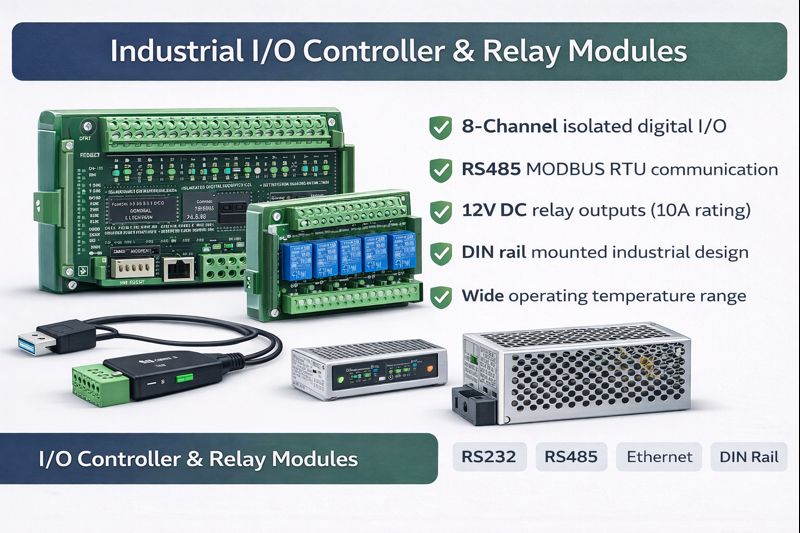

Industrial I/O + Relay Modules

Isolated digital I/O with Modbus RTU + 12V relay outputs—DIN rail ready.

RS485 Modbus
12V DC
DIN Rail

P—04

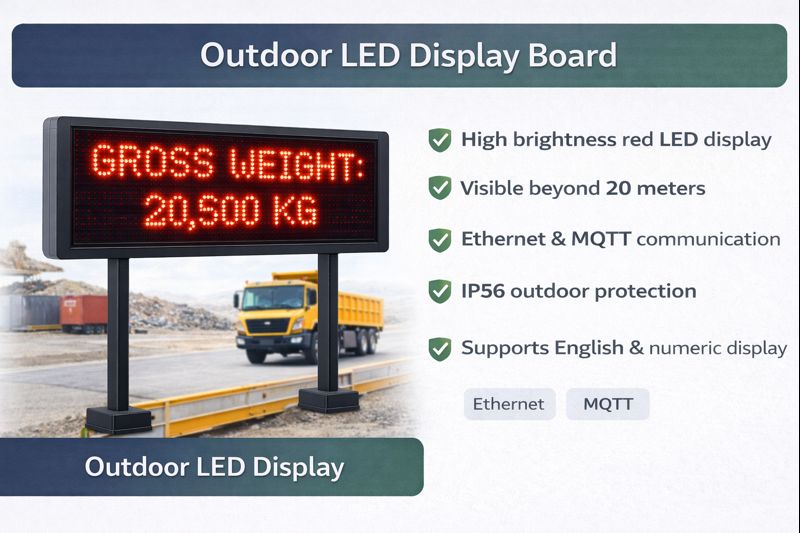

Outdoor LED Display

High brightness display with Ethernet + MQTT / API options for messaging.

>20m visibility
Ethernet
IP56+

P—05

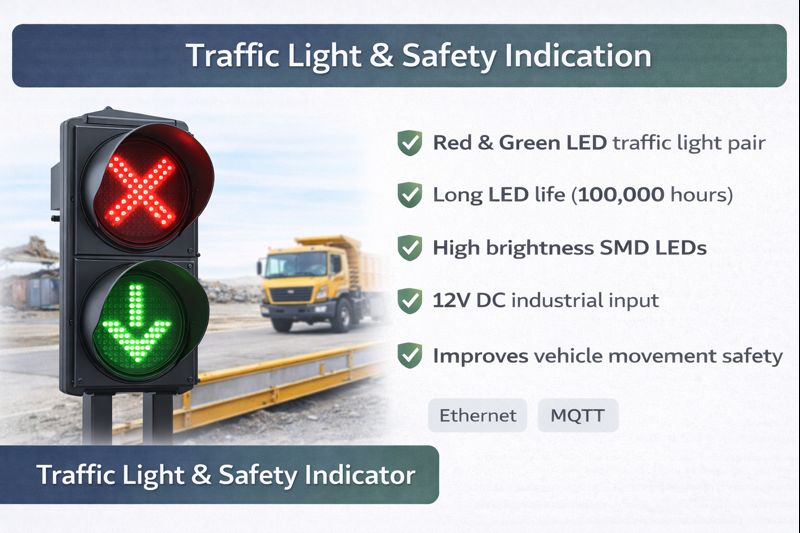

Traffic Light Pair

Red/Green LED indicator pair for safe entry/exit movement.

12V DC
100k hrs
High brightness

P—06

Weighbridge Safety Gate Kit

Complete gate safety kit including barriers and field accessories.

Outdoor
Industrial
Rugged

P—07

I/O Controller (Automation Core)

Central coordination of sensors, signals, barrier, display and integration stack.

Controller
Integration
LAN

P—08

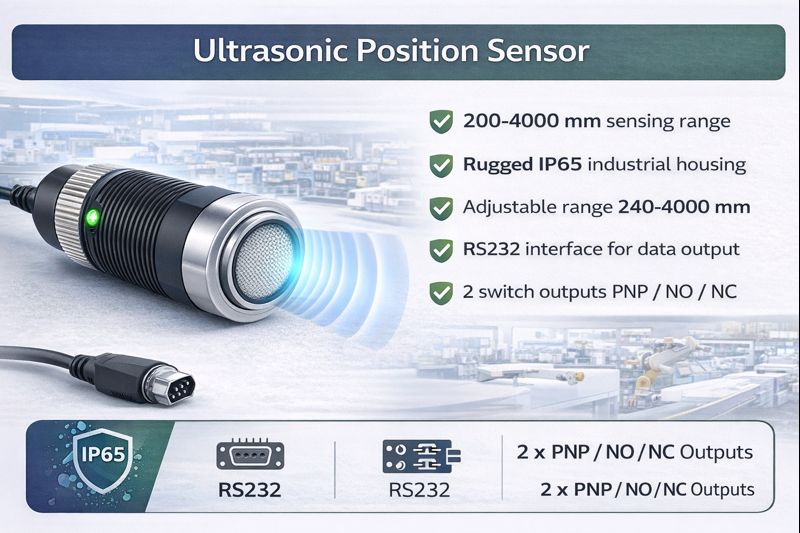

Vehicle Position Sensors

Ultrasonic positioning sensors for accurate weighing and vehicle detection.

200–4000mm
IP65
PNP NO/NC

Need the complete integrated kit?Barrier, RFID, controller, display, signals and sensors — supplied, installed and integrated.

Request a Quote

05Standard Operating Procedure

Procurement & Installation Workflow

Clear steps for weighbridge owners to procure and install approved automation devices through suggested vendors.

01
Access suggested vendor list
Visit the Rajasthan-Mines portal and view/download the suggested vendor list.
02
Vendor selection & order placement
Contact vendor, confirm order, and complete payment.
03
Device allocation & appointment
Vendor assigns device serial number and schedules installation slot.
04
Installation & configuration
Install, configure, and integrate with controller and on-site devices.
05
Data integration & compliance update
Vendor updates portal details; authority verifies and issues Installation Certificate.
06
Testing & Govt portal integration
Authority/SI tests configuration; successful setup integrates with Govt portal.
07
Completion & documentation
Receive certificate, warranty, user manual, training & handover documents.

06Technical Highlights

Built for harsh sites, ready for integration

Core specifications at a glance — from the field device to the Govt portal.

Field devices

RFID reader
Cameras
Sensors
Boom barrier
Traffic lights
LED display

I/O ControllerIsolated I/O · Modbus RTU · 12V relays

Desktop AppWeighbridge workstation on local LAN

Govt PortalIntegration over secured endpoints

RFIDS/01

865–867 MHz

UHF RFID (865–867 MHz)

Read range 3–12 meters. Fast multi-tag reading up to ~200 tags/sec. Ethernet socket communication support.

SensorsS/02

200–4000 mm

Vehicle Position Detection

Ultrasonic sensing range ~200–4000 mm. IP65 housing. Programmable outputs (PNP, NO/NC).

ControlS/03

Modbus RTU

Industrial I/O Controller

Isolated digital I/O modules with Modbus RTU (RS485) options and 12V relay outputs (DIN rail style).

DisplayS/04

>20 m

Outdoor LED Messaging

High brightness, >20m visibility. Ethernet communication. MQTT (Type-1) or API (Type-2) integration model.

SafetyS/05

≤5 sec

Traffic + Boom Barrier

Red/Green LED traffic pair. Barrier boom length up to 3m with ≤5 sec operation and sensor support.

NetworkS/06

LAN + Internet

LAN + Internet Architecture

Controller communicates to desktop app over local LAN; Govt portal integration over internet (secured endpoints).

07Contact · Orders

Let’s integrate your site

Share your weighbridge location and existing setup. We’ll propose the right automation kit, installation plan, and integration approach.

Technical Query 9462806660 24×7 support for installation, connectivity and functional issues. CCTV, PoE & Tenda Support 8502986422 For CCTV, PoE & Tenda support. Email info@geosat.in Share your requirement and we’ll respond with a complete solution plan. WhatsApp Chat on WhatsApp Quick demo & quote requests.

Installation within 30 working days Replacement within 48 hours (warranty) 24×7 support helpline
